We have completed the factory acceptance testing (FAT) and subsequent shipment of our newly engineered Integrated Tumble Belt Shot Blasting Machine to an automotive aluminum die-casting facility in Southeast Asia. This model is specifically developed for international buyers who require high-throughput cleaning of small batch components but operate within a highly constrained factory footprint.
On-Site Reality: 50% Footprint Saved & Zero Civil Works
Traditional tumble belt setups require separate housing for the chamber, media dust units, and ductwork, often demanding a dedicated foundation pit. This monoblock design integrates the blasting chamber, high-efficiency air-wash separator, and pulse-jet cartridge dust collector onto a single, heavy-duty rigid frame. By eliminating external duct networks, it shrinks the required equipment footprint by up to 50%, allowing plant managers to relocate the entire unit using a standard forklift when shop floor layouts change.
Key Engineering Specifications

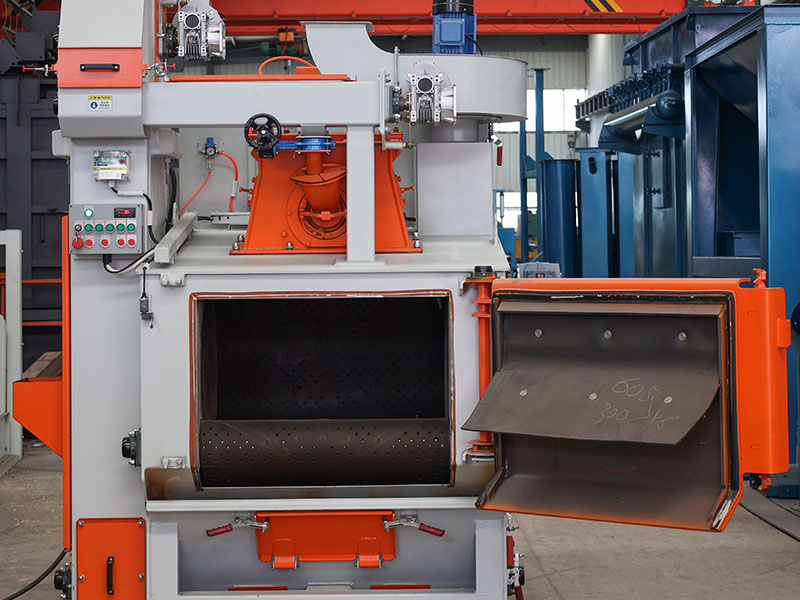

“Soft-Touch” Component Protection: The continuous tumbling action relies on a heavy-duty, wear-resistant perforated rubber belt. It delivers consistent 360° rotation under the blast stream while completely preventing nicking or structural collision damage on delicate aluminum castings and small forgings.

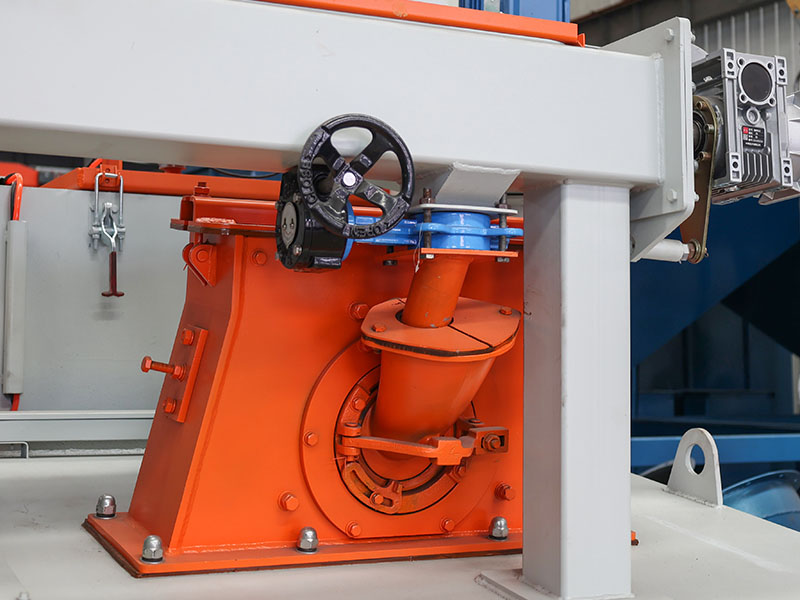

Direct-Drive Turbine Efficiency: Configured with optimized direct-drive blast wheels, the system maximizes media velocity while lowering aggregate motor power consumption, delivering a uniform Sa 2.5 surface cleanliness standard under ISO 8501-1.
Plug-and-Play Setup: The entire unit undergoes 100% pre-shipment electrical and mechanical integration testing. Equipped with a centralized Siemens PLC panel, the overseas client can transition to active production within hours simply by dropping the machine onto a flat concrete floor and connecting main power and compressed air.
