High-Performance Integrated Tumble Belt Shot Blasting Machine

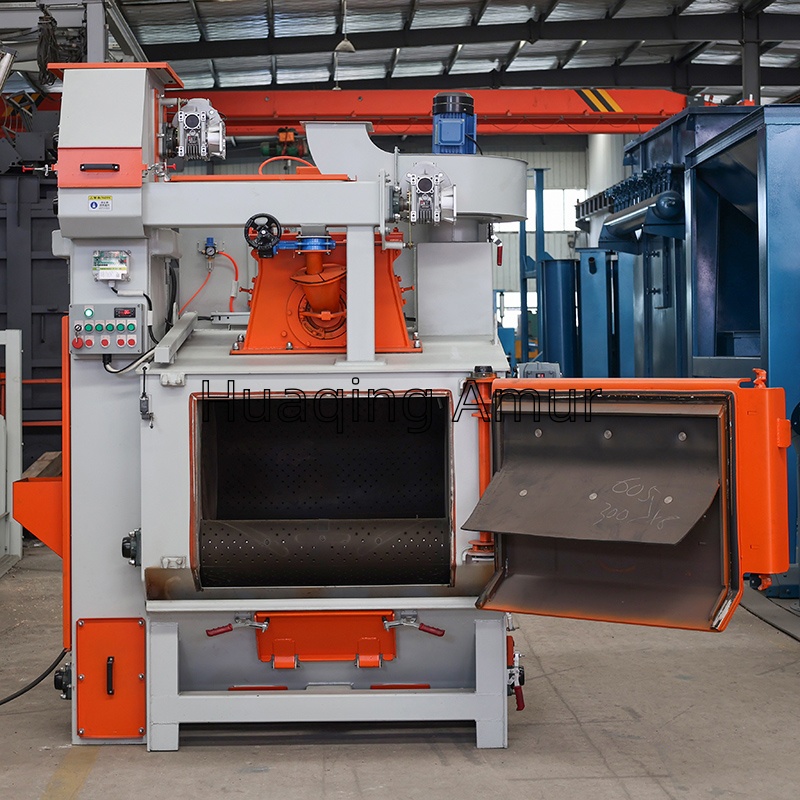

Our Integrated Tumble Belt Shot Blasting Machine is a precision-engineered, space-saving solution optimized for high-volume batch cleaning. Featuring a robust all-in-one monoblock design, it seamlessly integrates the blasting chamber, high-efficiency separator, and pulse-jet dust collector into a single unit.

This “Plug-and-Play” system eliminates the need for complex pit foundations or external ducting, making it the premier choice for modern workshops looking to maximize productivity within a minimal footprint.

Product Introduction

The Integrated Tumble Belt Shot Blasting Machine sets a new benchmark for operational convenience in industrial surface preparation. Unlike standard large-scale systems, this compact tumblast model is specifically engineered for rapid deployment and ease of use.

At its core, the system utilizes a heavy-duty, wear-resistant rubber belt that provides a gentle yet thorough tumbling action, ensuring 360° cleaning of small batches of castings, forgings, and heat-treated parts. Equipped with a Siemens PLC control system and a built-in high-efficiency pulse-jet dust collector, it delivers professional-grade Sa 2.5 cleanliness without the need for extensive civil works. It is the perfect balance of industrial power and logistical simplicity.

Technical parameters

Product Model	Q324 Standard	Q326 Standard	Q3210 Standard
End Plate Diameter (mm)	Φ400	Φ650	Φ1000
Max. Individual Part Weight (kg)	5	10	30
Maximum Load Capacity (kg)	100	200	500
Cleaning Productivity (kg/h)	400-600	600-1200	1500-3000
Blast Wheel (Turbine) Power (kW)	4	7.5	11
Abrasive Flow Rate (kg/min)	100	120	180
Total Installed Power (kW)	~7	~13	~21

Product Advantages

Compact Monoblock Construction: Integrates all functional modules, saving up to 50% of floor space compared to traditional designs.
High-Efficiency Direct-Drive Turbines: Optimized blast wheel layout ensures maximum coverage and reduces energy consumption.
Plug-and-Play Installation: No foundation required. Ready for operation immediately upon electrical connection.
Advanced Dust Filtration: Built-in pulse-jet system ensures emission levels stay below $15mg/m³$ , meeting global environmental standards.
Intelligent Automation: Siemens PLC and touch-screen HMI provide precise control over blasting cycles and abrasive flow.

APPLICATION & BLASTING RESULTS

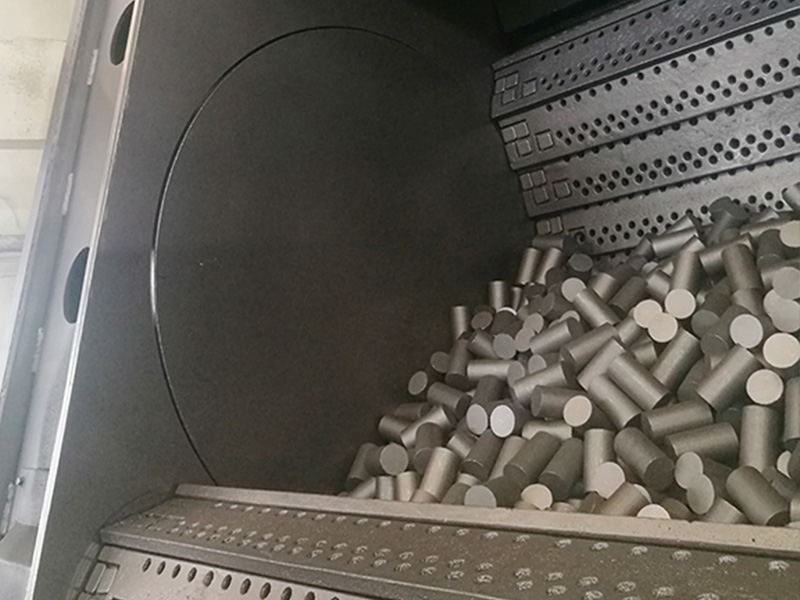

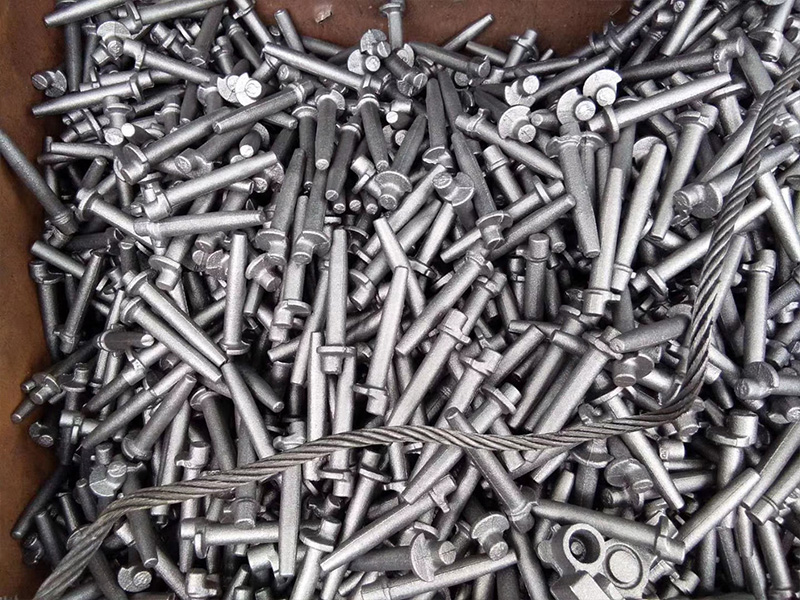

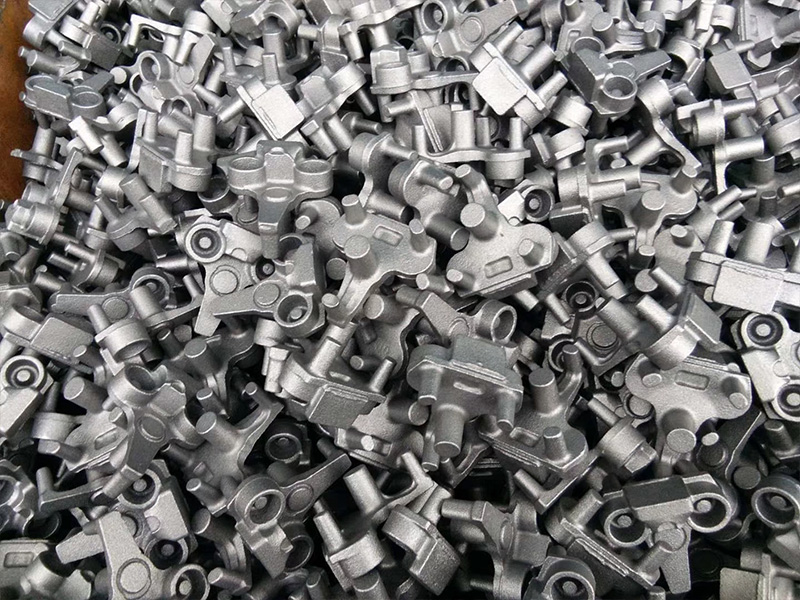

Performance Results of the Crawler-Type Shot Blasting Machine

CLEANING RESULT: Sa 2.5 (High Efficiency)

SUITABLE WORKPIECES

Small Castings
Standard Bolts
Hardware Parts
Aluminum Alloys
Mass-Produced Forgings
Heat-Treated Components
Precision Stamping Parts
Non-Fragile Workpieces

TARGET INDUSTRIES

Compact Power: The Integrated Tumble Blaster in Action

Watch how our Integrated Tumble Belt Shot Blasting Machine delivers professional results in a fraction of the space. This video showcases the seamless batch loading and efficient tumbling process, highlighting the quiet operation and dust-free environment of this all-in-one industrial solution.

Compact, integrated tumble belt machine: FAQ'S

How does this "Integrated" model differ from standard tumble belt machines?

The Integrated model combines the machine body, dust collector, and separator into a single footprint. It is pre-assembled and pre-tested, requiring no complex foundation or on-site installation, unlike standard models that are larger and modular.

Can I move the machine easily within my factory?

Yes. Its compact, foundation-free design and integrated frame allow it to be relocated with a forklift or crane much more easily than traditional multi-part systems.

What is the maximum load capacity for this compact model?

While designed for space efficiency, our integrated models are robust. They typically handle batch loads from 100kg to 600kg, depending on the specific model size you choose.

Is it as powerful as larger shot blasting machines?

Absolutely. It uses the same high-performance turbine technology as our larger machines, ensuring a consistent Sa 2.5 finish while using less space and energy.
