Incline Drum Shot Blasting Machine | Automatic Batch Solution
The Incline Drum Shot Blasting Machine is a premier, high-efficiency solution engineered for the automated batch processing of small-to-medium industrial components. Featuring a unique tilted rotating drum, it ensures superior 360° abrasive coverage while facilitating effortless automated loading and unloading. This system maximizes production throughput while achieving a consistent Sa 2.5 finish. Managed by a Siemens PLC, it maintains strict 10mg/m³ dust emission standards, making it the ideal choice for modern foundries requiring high-efficiency, hands-free surface preparation.
Product Introduction
Our Incline Drum Series represents the next generation of batch surface preparation technology. By utilizing a specialized tilted vessel, the machine allows workpieces to tumble naturally and discharge via gravity, significantly reducing cycle times and manual labor. Every component, from the high-manganese steel lining to the precision-engineered turbines, is built for 24/7 industrial use.
Powered by ABB high-performance motors and centrally controlled by a Siemens PLC system, this machine provides an ISO 8501-1 compliant solution. It is particularly effective for mass-produced fasteners, brass fittings, and small castings where uniform cleanliness and automated workflow integration are critical for operational success.
Technical parameters
Product Advantages
Automated Discharge: Tilted drum design enables gravity-assisted loading and unloading.
Uniform Finishing: Constant 3D tumbling ensures no blind spots during the blasting cycle.
Smart Control: Siemens PLC manages synchronized speed, time, and abrasive flow.
Eco-Friendly: High-efficiency pulse-jet filtration keeps emissions below 10mg/m³ (OSHA compliant).

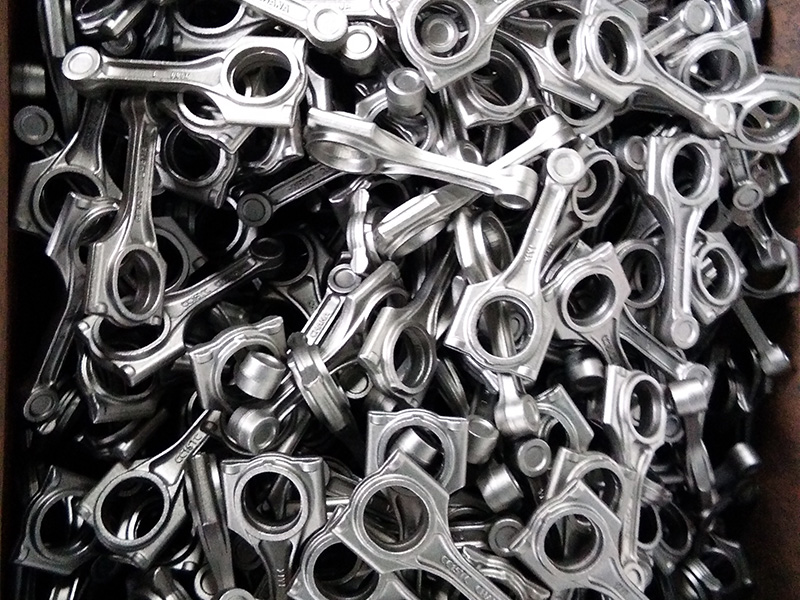

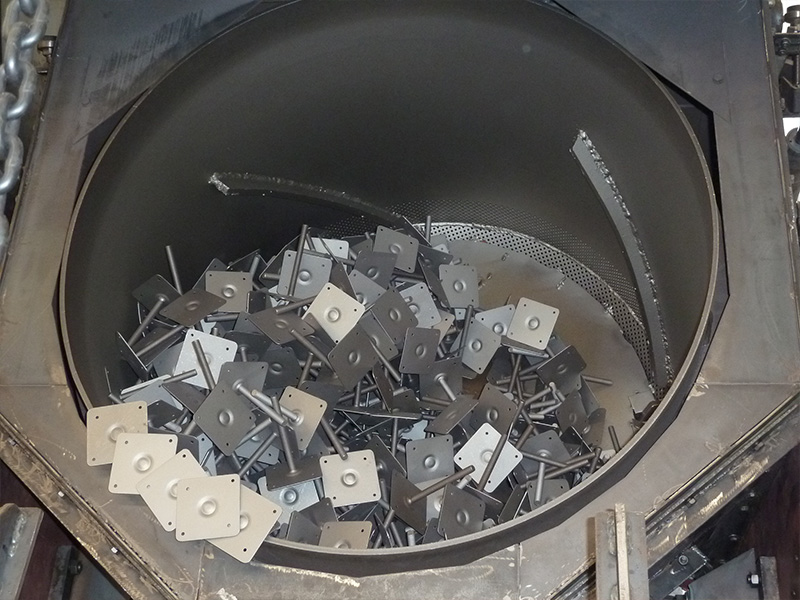

APPLICATION & BLASTING RESULTS
CLEANING RESULT: Sa 2.5 (High Efficiency)
SUITABLE WORKPIECES
- Precision Fasteners
- Small Castings
- Forged Components
- Brass Fittings
- Aluminum Parts
- Stamped Hardware
- Automotive Studs
- Threaded Rods
TARGET INDUSTRIES
- Fastener Mfg
- Auto Hardware
- Valve & Fitting Mfg
- Tool & Die
- Electronic Parts
- Foundries
- Metal Processing
- Construction
Watch in Action: Incline Drum Automation
Discover the efficiency of the Incline Drum Series. Watch how the unique tilted design enables perfectly uniform cleaning and seamless automated unloading, delivering a superior Sa 2.5 finish for high-volume batch production.
Foundation-free, convenient incline drum integrated machine: FAQ'S
What is the main advantage of the Incline Drum design?
The primary benefit is the automatic loading and unloading capability. The tilted drum allows workpieces to be discharged easily by gravity once the cycle is complete, significantly reducing manual labor and cycle times compared to standard horizontal drum machines.
Is this machine suitable for delicate components?
Yes. The rotation speed of the incline drum can be precisely adjusted via the Siemens VFD. This ensures that even smaller or relatively delicate parts are tumbled gently, preventing surface damage while still achieving thorough cleaning.
Does the machine meet international environmental standards?
Absolutely. It features our signature high-efficiency pulse-jet filtration system, which maintains dust emissions below 10mg/m³. This ensures full compliance with global air quality and OSHA safety standards.
How durable is the internal drum lining?
We use premium high-manganese steel for the drum's inner lining. This material is specifically chosen for its exceptional wear resistance under constant abrasive impact, ensuring a long operational lifespan with minimal maintenance requirements.
