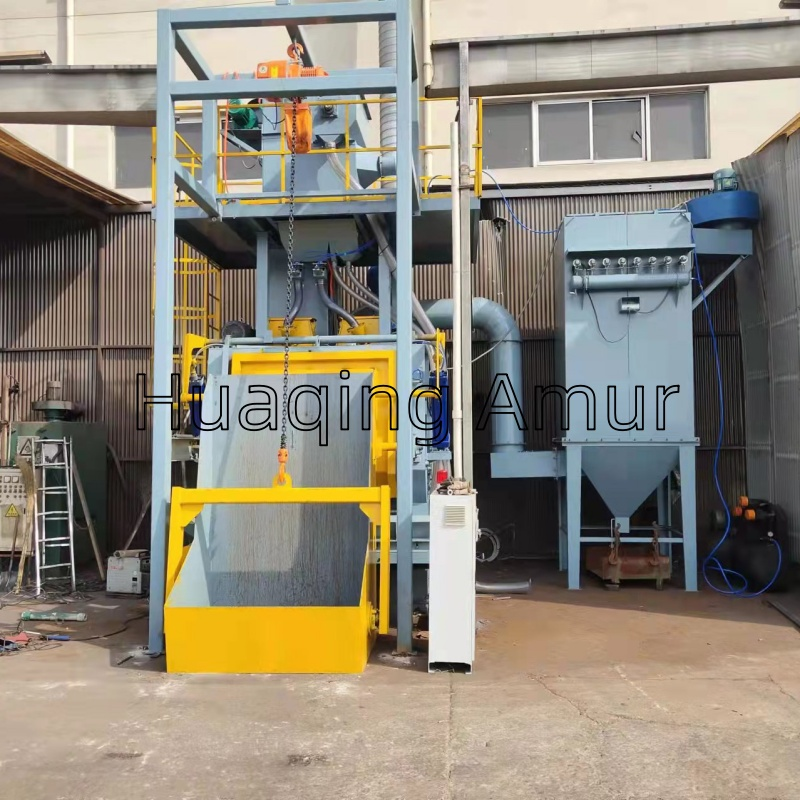

Tumble Track Type Shot Blasting Machines with loading/unloading system

Tumble Track Type Shot Blasting Machines with loading/unloading system

Tumble Track Type Shot Blasting Machines with loading/unloading system

This series incorporates automatic loading and unloading systems on top of conventional track-type shot blasting machines, further enhancing cleaning efficiency and reducing labor costs.

Structural Components

  1. Projection System:
  2. Track Conveyor System:
  3. Abrasive Circulation System:
  4. Dust Collection System:

5.Control System: PLC control.

  1. 6. Automatic Loading/Unloading System: Features either chain hoist or hydraulic loading methods, paired with belt conveyors or vibrating troughs for unloading, significantly boosting production efficiency.





Advantages of Track-Type Shot Blasting Machines

◆ High-Efficiency Surface Treatment Capability：

  1. High batch processing efficiency:

2.Uniform and stable treatment results:

◆ Wide Applicability

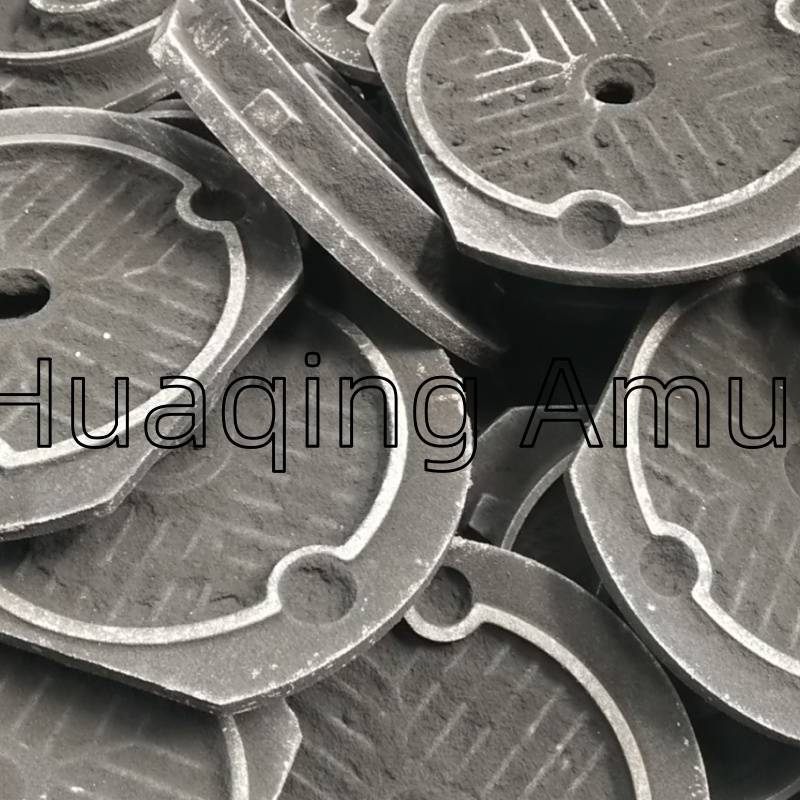

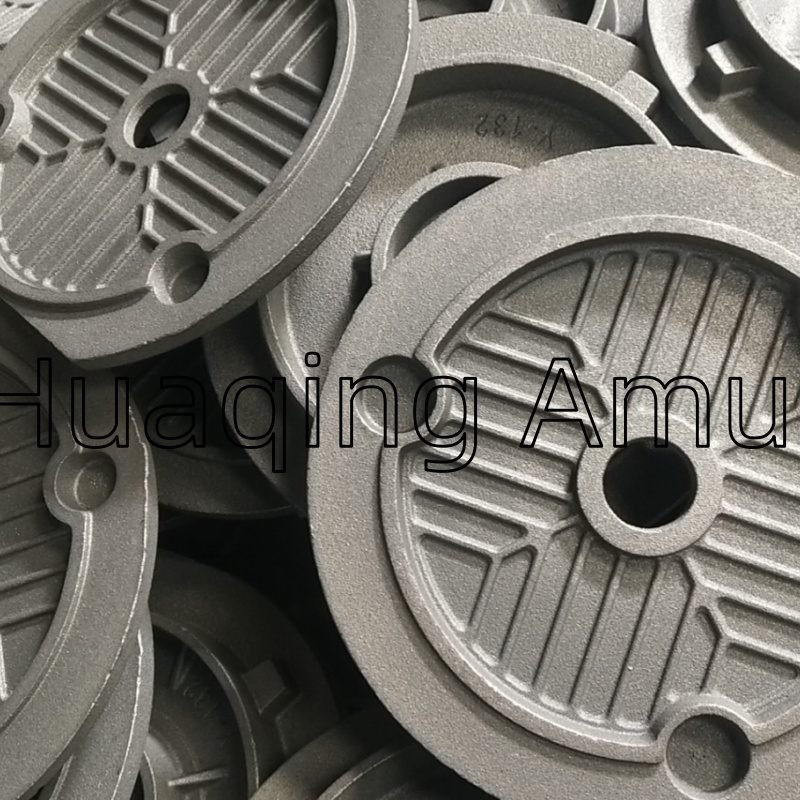

  1. Diverse workpiece types: Processes various small-to-medium metal components including castings, forgings, stampings, heat-treated parts, etc. No shape restrictions—any item fitting within the track chamber can be treated.

◆ High Automatic Reduces Labor Costs

  1. Automated Operation:
  2. Labor Cost Savings:

◆ Superior Environmental and Safety Performance

  1. Minimal Dust Pollution
  2. Enclosed Operation for Safety and Reliability:. Improves Coating Adhesionand Surface Strengthening Effects

Specification of Tumble belt type shot blasting machine with automatic loading/unloading system

Technical Parameters

No. Item QR3210 QS3215 QS3220
1 Productivity 2-3t/h 4-5t/h 5-6t/h
2 Feeding amount 600kg 1000-1200kg 1200-1600kg
3 Max.weight of single workpiece 30kg 50kg 60kg
4 Diameter of end disk 1000mm 1000mm 1200mm
5 Turbine power 15kW 11kW×2 15kW×2
6 Abrasive flow rate 250kg/min 250kg/min 250kg/min×2
7 Ventilation 3500m³/h 5000m³/h 8000m³/h
8 Power consumption 26kW 24.3kW 53kW
9 Outline size 3972×2600×4768mm 3972×2600×4768mm 7200×3200×5800mm
