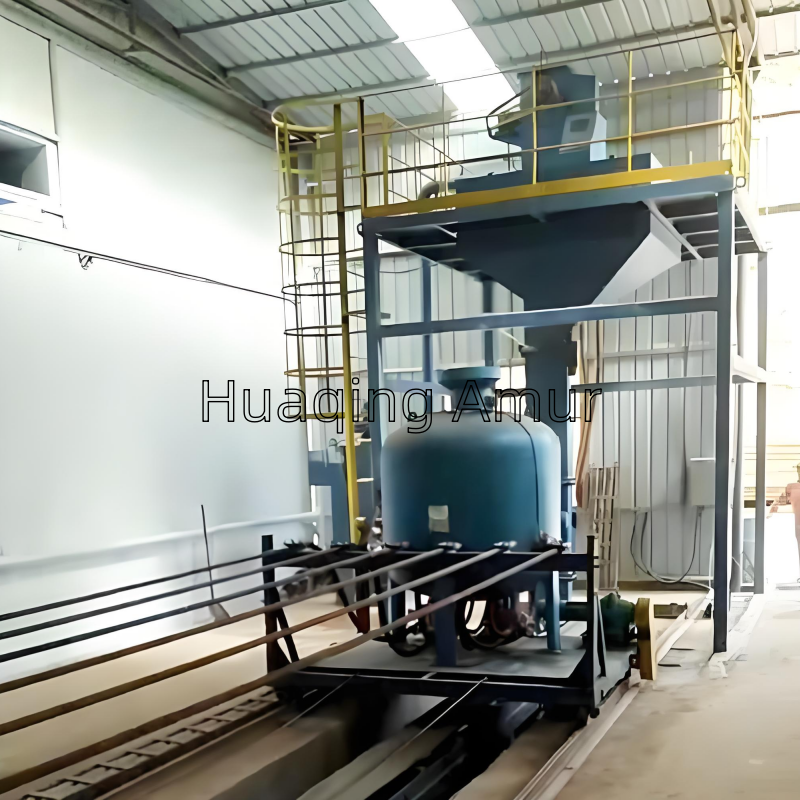

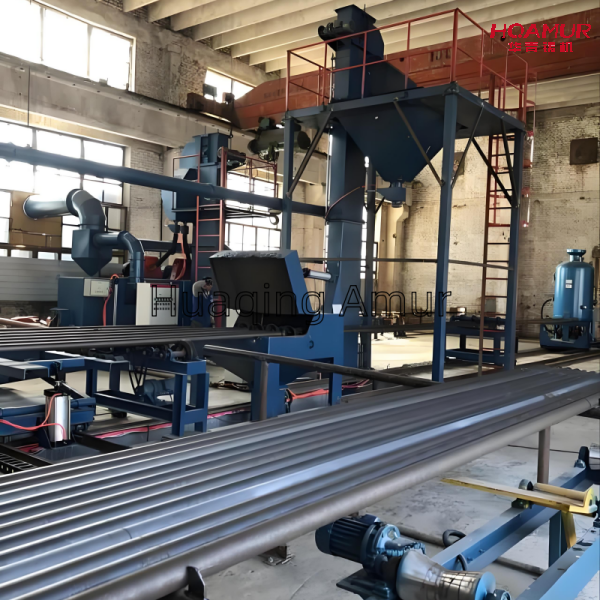

Steel pipe inner wall cleaning machine

Steel pipe inner wall cleaning machine

Steel pipe inner wall cleaning machine Main Components



  1. Power System: Motor, hydraulic pump, or pneumatic unit
  2. Cleaning Actuator: High-pressure nozzle
  3. Transmission System: Gears, chains, couplings, etc.
  4. Support and Positioning Device: Fixed steel pipe
  5. Control System: PLC or HMI for automated operation and parameter adjustment
  6. Auxiliary System: Dust removal device, abrasive recovery unit, etc.



Application Scenarios

  1. Oil and Gas Industry: Cleaning oil stains and rust from oil well pipes and internal walls of oil/gas transmission pipelines
  2. Chemical Industry: Removing chemical residues from internal walls of chemical pipelines
  3. Machinery Manufacturing: Cleaning internal walls of hydraulic hoses and cylinder tubes
  4. Construction Industry: Cleaning internal walls of scaffolding steel pipes and pile foundation steel pipes
  5. Shipbuilding and Offshore Engineering: Removing seawater corrosion products from ship pipelines and off shore platform steel pipes

Selection Recommendations

Steel Pipe Specifications: Diameter, length, material (e.g., stainless steel, carbon steel)

Cleaning Requirements: Rust, weld slag, oil residue, cleanliness grade, production efficiency

Cost Budget: Equipment procurement cost, operating cost, maintenance cost

Environmental Requirements: Dust collection systems, etc.

After-Sales Service: Supplier technical support capability, spare parts supply cycle, etc.



Key Technical Parameters

  1. Pipe Diameter: 50–3000 mm.
  2. Pipe Length: e.g., 2–12 m.
  3. Cleaning Efficiency: Number or length of pipes processed per hour.
  4. Cleanliness Standard: Surface cleanliness grade Sa2.5.
  5. Power Consumption: Equipment energy consumption.



Specification of steel pipe inner wall cleaning sand blasting machine

No. Model Pipe diameter Cleaning speed
1 QGN100 Θ50-300mm 1-4m/min
2 QGN700 Θ325-720mm 1-4m/min
3 QGN1000 Θ720-1016mm 1-4m/min
4 QGN1500 Θ1016-1500mm 1-4m/min
