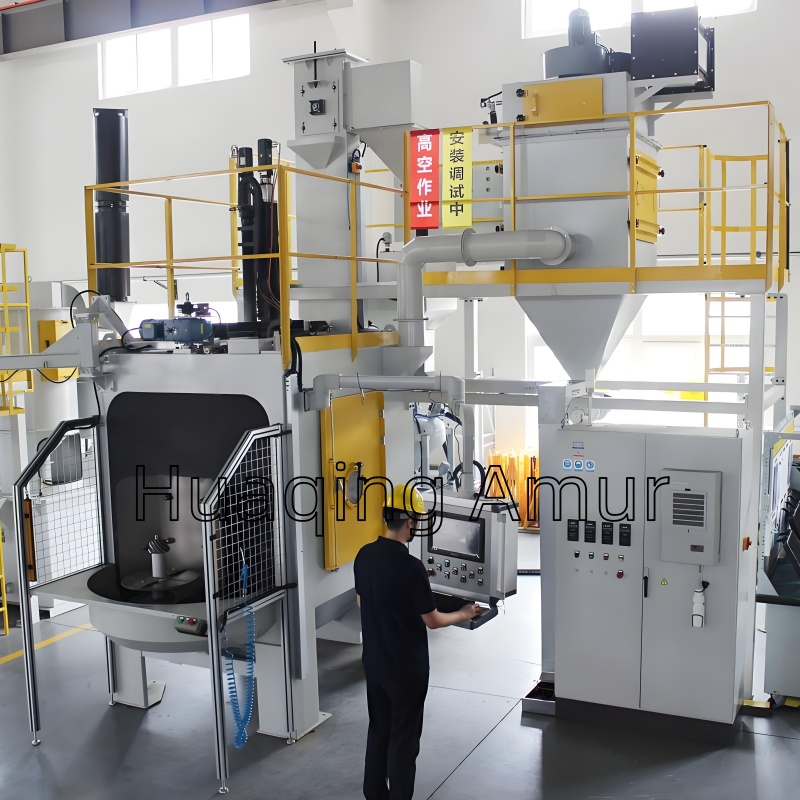

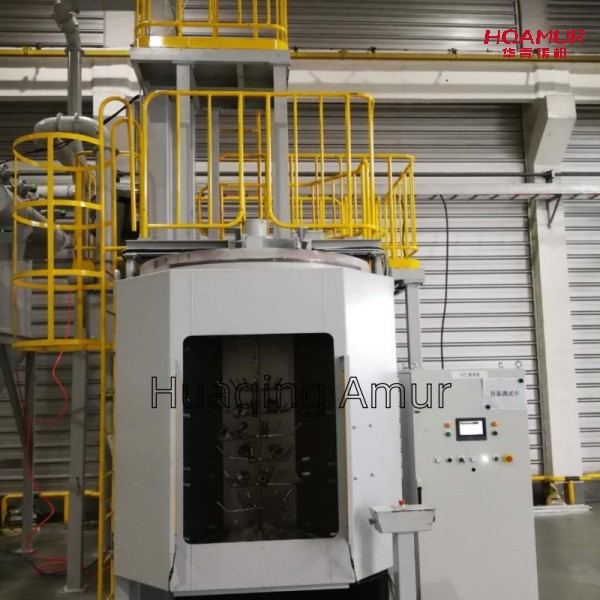

Hook Turntable Shot Blasting Machine
Hook Turntable Shot Blasting Machine
Hook Turntable Shot Blasting Machine is a device used for surface cleaning and strengthening of metal workpieces.

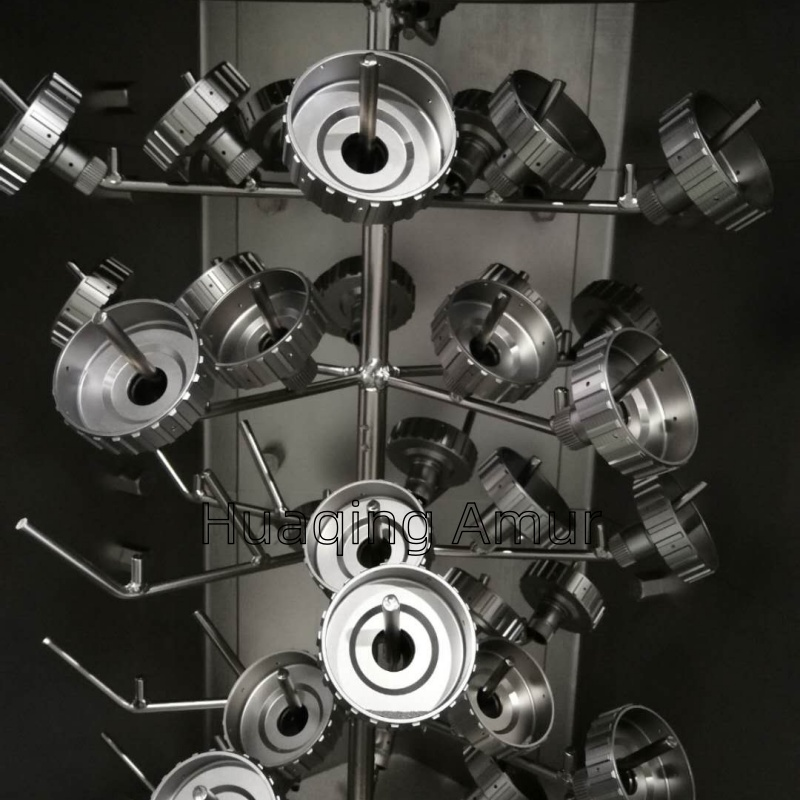

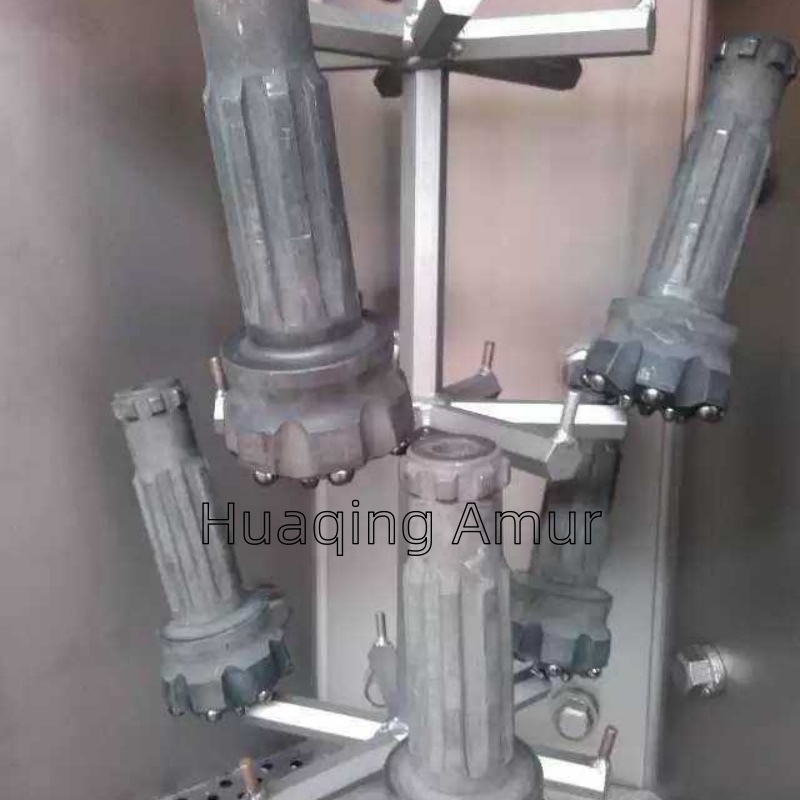

Hook Turntable Mechanism: the core components of the equipment, comprising the hook assembly and drive system.
Two sets of hanging systems allow loading on one side while cleaning occurs on the other.
Shot Blasting Chamber: Equipped with wear-resistant liners to prevent shot splatter and dust leakage. High-speed shot blasting wheels are mounted on the top or sides.
Abrasive Recirculation System: Comprises a screw conveyor system, elevator, separator, and other components.
Dust Collection System: Captures and treats dust generated during shot blasting, ensuring emissions meet standards and protecting the environment.
Electrical Control System: Manages overall equipment operation, fault diagnosis, and more.
Features:
1)High-Efficiency Cleaning & Hardening: Comprehensive, dead-zone-free cleaning and hardening.
2)High Flexibility: Suitable for single-piece or small batch production, accommodating workpieces with complex geometries.
3)Energy Efficient and Eco-Friendly: Shot recycling rate up to 99.5%, minimal wear.
Applications:

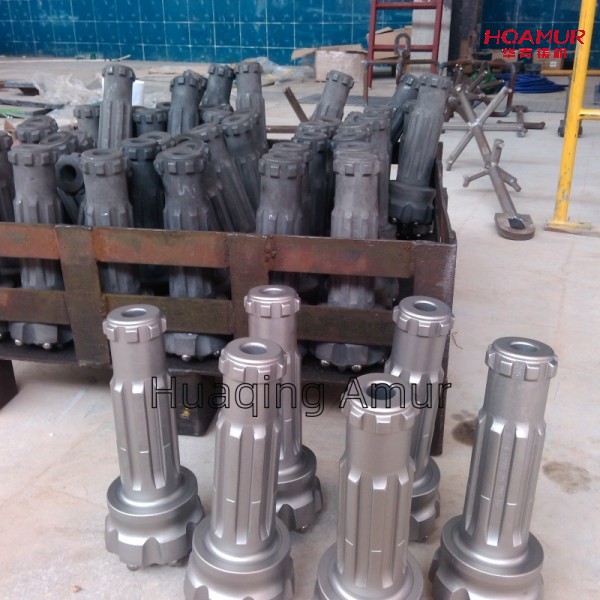

Various castings, forgings, weldments; particularly effective for strengthening gears and shafts.
| Item/Specification | QD341 | QD341A | |
|---|---|---|---|
| Hook system | Max.size of workpiece | 400x750mm | 500x850mm |
| Hook Qty. | 2pcs | 2pcs | |
| Turbine | Power | 7.5kwx2 | 7.5kwx2 |
| Abrasive flow rate | 120kg/minx2 | 120kg/minx2 | |
| Dust collector | Ventilation capacity | 5000m³/h | 5000m³/h |
| Air fan power | 4kw | 4kw | |
| Outline dimensions | LxWxH | 5310x2480x3970 | 5500x2700x4550mm |
