The Mesh Belt Shot Blasting Machine is a high-efficiency, automated solution specifically designed for the continuous surface treatment of thin-walled, fragile, or flat workpieces. Utilizing a high-strength manganese steel wire mesh conveyor, it transports parts through the blasting chamber without any part-to-part collision, ensuring 360° coverage and a consistent surface profile.
This system is the definitive choice for high-volume production lines in the automotive, appliance, and hardware industries, delivering a superior Sa 2.5 finish while maintaining maximum throughput.

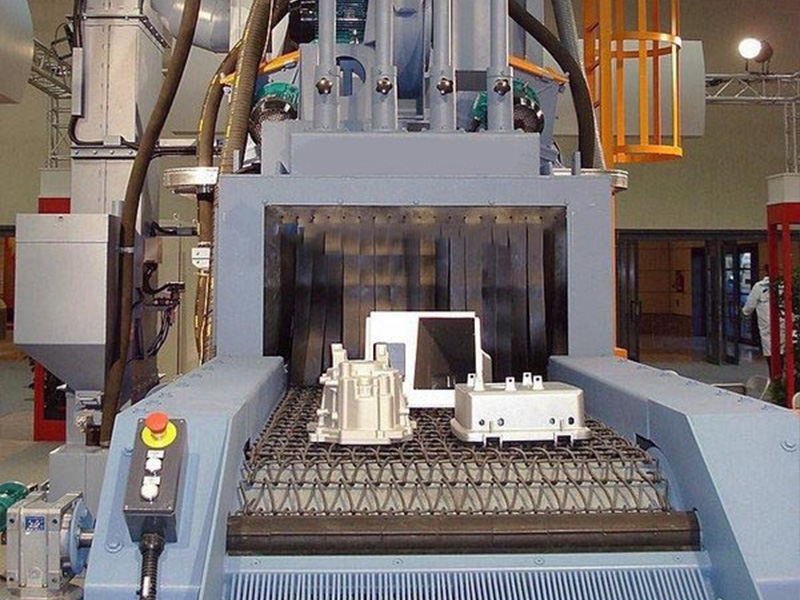

Our Mesh Belt Shot Blasting Machine represents the perfect balance of speed and precision. Unlike tumble belt machines where parts collide, the mesh belt system keeps workpieces in a fixed position on the conveyor, making it ideal for delicate castings and precision stampings. The process is fully continuous: parts are loaded on one end, pass through the multi-turbine blasting zone, and emerge completely descaled on the other.
Powered by ABB high-performance motors and centrally managed by a Siemens PLC system, the machine offers a clean, automated, and ISO 8501-1 compliant operation. Its modular design allows for easy integration into existing production lines, providing a robust foundation for subsequent coating or assembly.
| Item/Model | QWD 600 | QWD 800 | QWD 1000 | QWD 1200 |
|---|---|---|---|---|
Wire mesh belt width (mm) | 600 | 800 | 1000 | 1200 |
Cleaning speed (m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
Abrasive flow rate (kg/min) | 4×120 | 4×120 | 4-6×180 | 4-8×250 |
Non-Collision Processing: Parts remain stationary on the wire mesh belt, preventing surface nicks and damage to thin-walled or fragile components.
High-Volume Productivity: Continuous flow design eliminates batch loading delays, making it the most efficient solution for mass-produced small parts.
360° Abrasive Coverage: Multiple high-velocity turbines are strategically positioned above and below the mesh belt for comprehensive cleaning in a single pass.
Smart Speed Control: Integrated Siemens VFD (Variable Frequency Drive) allows for precise adjustment of the conveyor speed to match different material rust grades.
Eco-Friendly Filtration: Advanced pulse-jet dust collection system maintains emissions below 10mg/m³, meeting strict OSHA safety standards.
CLEANING RESULT: Sa 2.5 (High Efficiency)

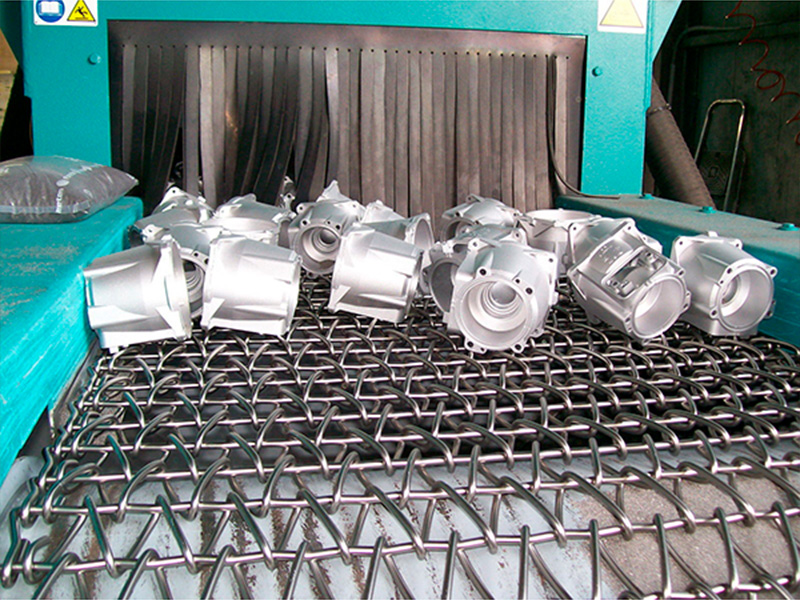

Witness the high-speed efficiency of the Mesh Belt Series. See how fragile parts are transported through the blast zone on a continuous wire mesh, achieving a consistent Sa 2.5 finish with zero part-to-part collision.
Mesh belt machines are ideal for workpieces that are fragile, thin-walled, or flat, as they prevent part-to-part collision. Unlike tumble belts, parts remain in a fixed position on the mesh, ensuring high-precision cleaning without any surface damage or nicks.
Yes. Our high-efficiency pulse-jet dust collection system keeps emissions below 10mg/m³, fully meeting strict international environmental and OSHA safety regulations for a clean and safe industrial workspace.
The conveyor is crafted from premium high-manganese steel, specifically engineered to withstand high-velocity abrasive impact. It is designed for years of reliable, high-volume service in demanding production environments with minimal maintenance required.
Absolutely. Featuring a Siemens PLC and VFD system, the mesh belt speed is fully adjustable. This allows for seamless integration into your existing automated workflow, ensuring the blasting intensity perfectly matches your specific production requirements.
