Hook Type Shot Blasting Machine | Universal Automatic & Batch Solution
The Hook Type Shot Blasting Machine is the ultimate all-rounder for modern surface treatment. Engineered for maximum versatility, it effortlessly handles a wide range of applications—from large, irregular structural steel to delicate, high-precision castings.
This system supports both fully automatic and batch production, allowing you to scale your workflow from standalone operations to fully integrated lines. With its compact integrated design and foundation-free setup, it delivers powerful Sa 2.5/3.0 cleaning performance while saving valuable factory floor space.
Product Introduction
Our Hook Type Shot Blasting Machine is designed for manufacturers who demand flexibility without compromising on power. Unlike specialized continuous systems, this series offers a universal solution for workpieces that cannot be tumbled due to their complex geometries, heavy weight, or fragile nature.

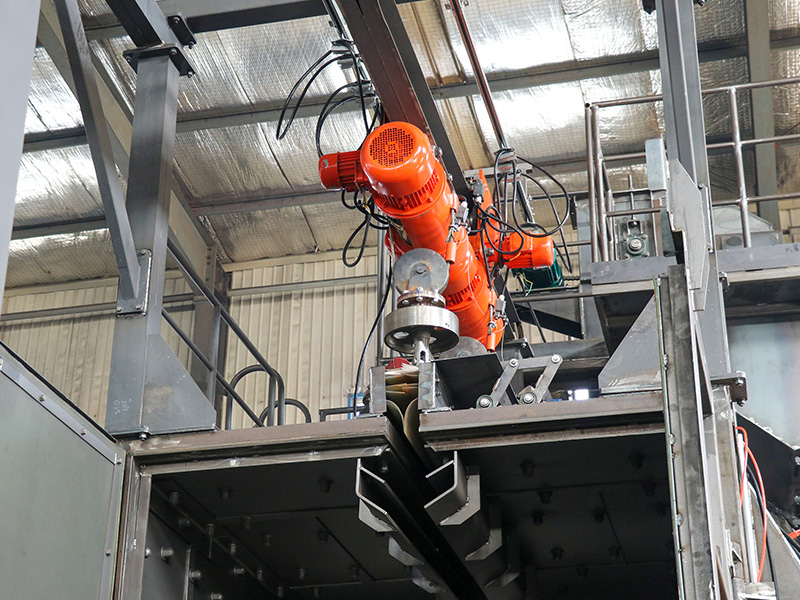

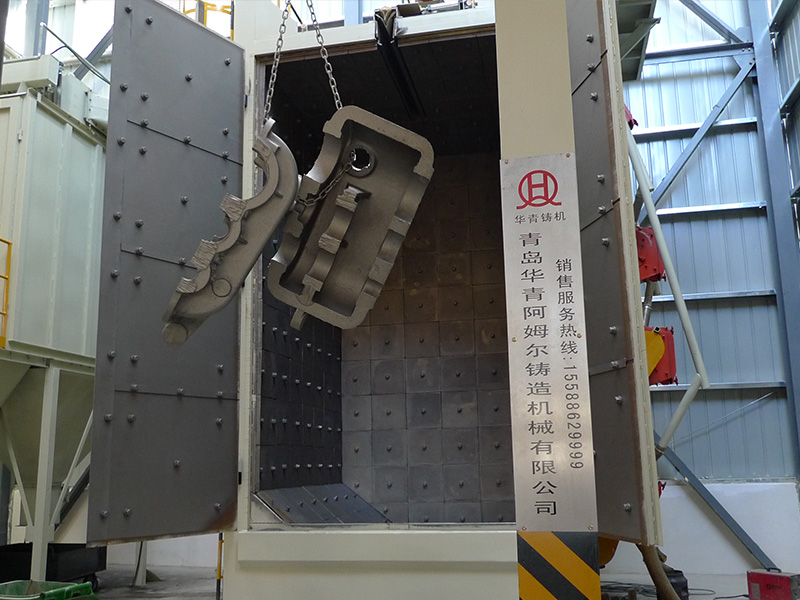

The system features an advanced rotating hook mechanism that ensures 360° abrasive coverage for every corner of the workpiece. Managed by an intelligent Siemens PLC system, the machine adapts seamlessly to your specific cycle requirements—whether you are running intensive fully automatic production or specialized manual batch loads. Its compact footprint and monoblock construction mean it can be integrated into existing workshops with ease, providing a high-ROI solution for automotive, foundry, and construction industries.
Technical parameters
Product Advantages
Space Optimization: Compact, foundation-free design for flexible installation and rapid deployment in limited factory spaces.
Non-Collision Processing: Overhead hook transport eliminates metal-to-metal contact, perfectly protecting delicate or complex-shaped workpieces.

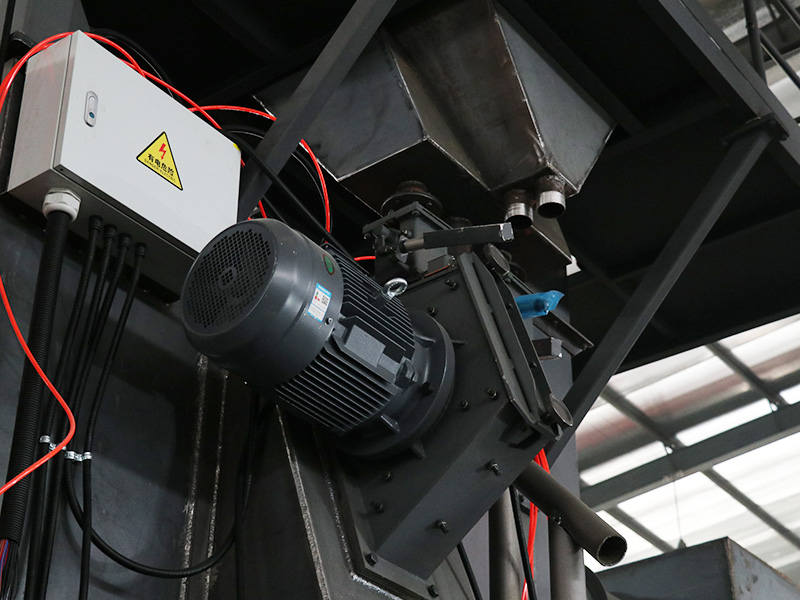

High-Efficiency Blasting: Multiple high-performance turbines provide full-coverage cleaning to achieve a consistent Sa 2.5 surface finish.

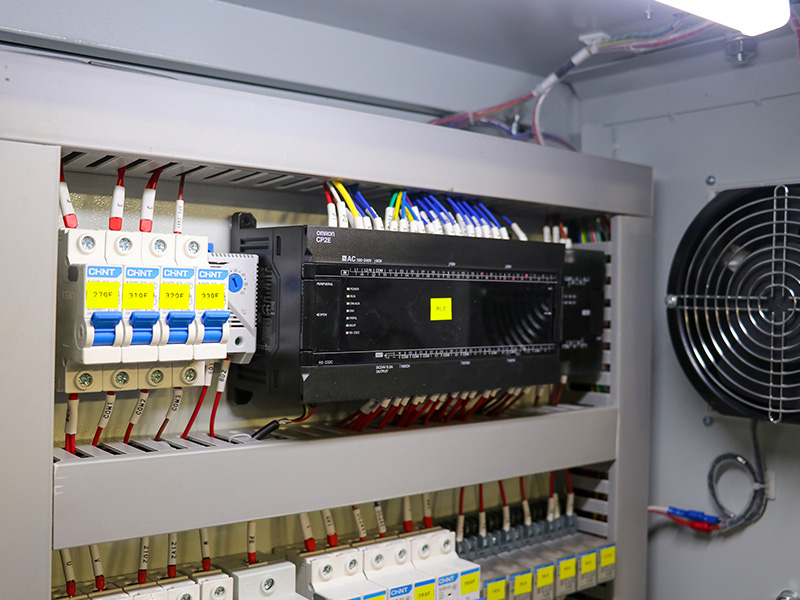

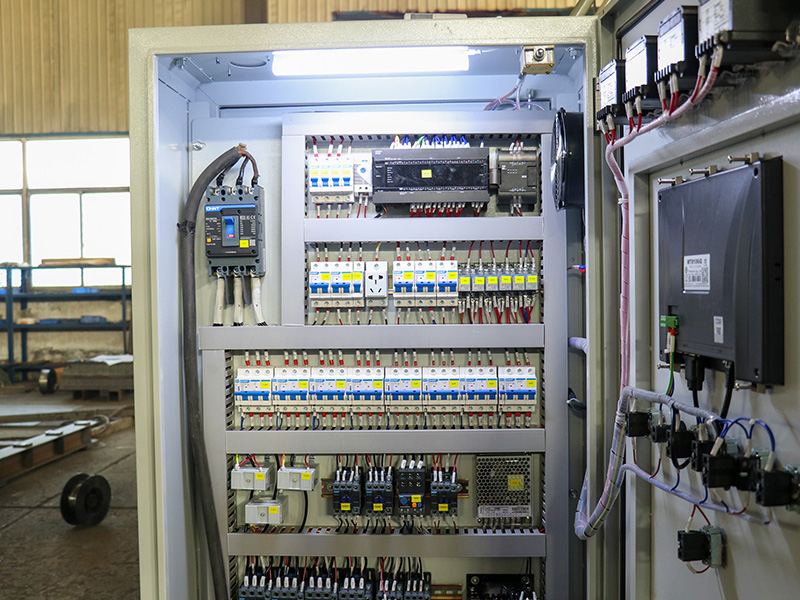

Smart Automation: Supports seamless integration with production lines via an intelligent Siemens PLC system for both automatic and batch cycles.
Eco-Friendly Standard: Advanced filtration keeps dust emissions below 10mg/m³, meeting strict OSHA safety regulations and global environmental standards.
APPLICATION & BLASTING RESULTS
CLEANING RESULT: Sa 2.5 (High Efficiency)
SUITABLE WORKPIECES
- Large Castings
- Structural Steel
- Precision Parts
- Engine Blocks
- Heavy Forgings
- Aluminum Alloys
- Non-Tumbleable Parts
- Heat-Treated Frames
TARGET INDUSTRIES
- Construction Machinery
- Automotive Industry
- Pump & Valve Mfg
- Wind Power & Energy
- Rail & Transportation
- Foundry & Smelting
Watch the Machine in Action: Hook Type Shot Blaster
Experience the high-efficiency cleaning power of our Hook Type Shot Blasting Machine. This video showcases the automated overhead transport and 360° rotating blasting action, demonstrating rapid rust removal and surface finishing for large, complex, and delicate workpieces without the risk of collision damage.
Foundation-free, convenient hook integrated machine: FAQ'S
Why is a hook-type machine considered more "universal" than other models?
The Hook Type Shot Blasting Machine can handle a far wider variety of shapes and sizes than tumble-belt or pass-through machines. From fragile, thin-walled aluminum parts to heavy, complex engine blocks, the rotating hook ensures every corner is thoroughly cleaned without the parts ever touching or colliding with each other.
Can I switch between manual batch and fully automated production?
Absolutely. Our system is designed for maximum operational flexibility. The Siemens PLC control allows you to run specialized manual batches for unique projects or seamlessly integrate the machine into a fully automated production line with robotic loaders. This dual-mode capability ensures the machine grows alongside your production needs.
Does this machine require a special concrete foundation?
No. Most of our standard hook-type models feature a foundation-free, compact integrated design. This not only saves up to 30% of your valuable factory floor space but also significantly reduces installation costs and time. You can deploy the machine on any standard industrial floor and relocate it easily if your factory layout changes.
What is the typical maintenance cycle for the hook and wear parts?
Our machines are built for high-intensity industrial use. The high-chromium (Cr20+) blasting blades typically offer a service life of 500-800 working hours, while the heavy-duty hook mechanism is engineered for years of reliable service with minimal maintenance. We provide a comprehensive spare parts kit and a "plug-and-play" component design to ensure your downtime is kept to an absolute minimum.
Driven by Innovation, Defined by Quality
Leveraging next-generation technologies to deliver high-
performance industrial machinery solutions across the globe.
Request a Custom Quote
Fill out the details below, and our engineers will provide a custom quote within 24 hours.
