Hook Pass-Through Shot Blasting Machine | Continuous High-Volume Production
The Hook Pass-Through Shot Blasting Machine is a high-efficiency solution engineered for continuous, automated surface treatment of diverse workpieces. Specifically designed for high-volume production lines, it allows workpieces to move seamlessly through the blasting chamber via an overhead rail system, ensuring uninterrupted cleaning and descaling for large-scale operations.
Ideal for structural steel and mass-produced forgings, this system delivers superior Sa 2.5 surface cleanliness while maximizing throughput and minimizing manual handling in demanding industrial environments.
Product Introduction

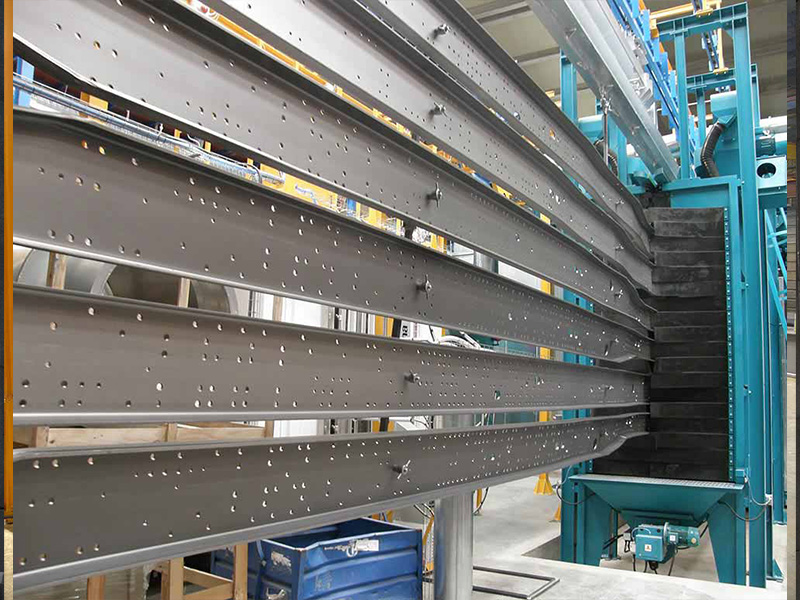

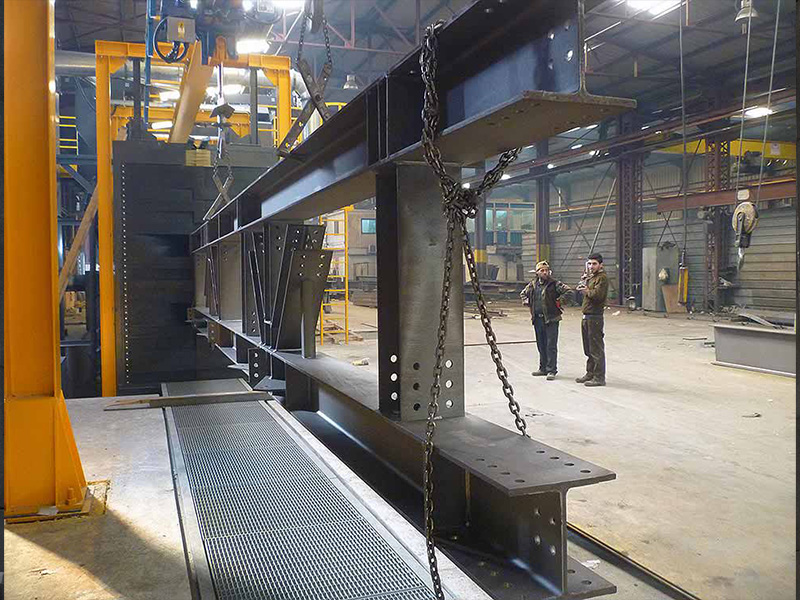

Our Hook Pass-Through Shot Blasting Machine represents the pinnacle of automated surface preparation for long or large-volume components. Unlike standard batch-type hook machines, the pass-through design creates a linear, non-stop workflow where workpieces enter from one side and exit the other. This significantly boosts efficiency for manufacturing plants dealing with structural components, engine housings, and heavy weldments.
Equipped with multiple high-performance direct-drive turbines, the system ensures 360° coverage and a consistent finish that meets strict ISO 8501-1 standards. Controlled by an intelligent Siemens PLC system, the conveyor speed and blasting intensity can be precisely adjusted to match your production cadence. It is the definitive choice for industries requiring both massive capacity and world-class surface quality.
Technical parameters
Product Advantages
Continuous Workflow: Pass-through design enables uninterrupted processing, eliminating the idle time of batch loading.
High-Volume Efficiency: Multiple high-performance turbines provide full-coverage cleaning to achieve a consistent Sa 2.5 finish.
Smart Automation: Supports seamless integration with production lines via Siemens and ABB electronics for precise process control.
Eco-Friendly Standard: Advanced filtration system maintains dust emissions below 10mg/m³, compliant with OSHA safety regulations.
Customized Solutions: Tailored rail lengths and chamber dimensions to fit your specific factory layout and workflow needs.
APPLICATION & BLASTING RESULTS
CLEANING RESULT: Sa 2.5 (High Efficiency)
SUITABLE WORKPIECES
- Structural Steel
- Engine Frames
- Large Castings
- Mass-Produced Forgings
- Electric Motor Housings
- Heat-Treated Components
- Heavy Brackets
- Complex Weldments
TARGET INDUSTRIES
- Heavy Industry
- Automotive Manufacturing
- Infrastructure Construction
- Railway Transport
- Energy & Power Sector
Watch the Machine in Action: Hook Pass-Through Blaster
Experience the non-stop cleaning power of our Hook Pass-Through Shot Blasting Machine. This video showcases the continuous overhead transport system, demonstrating how large components move through the chamber for high-speed, automated surface preparation.
Foundation-free, convenient hook pass-through machine: FAQ'S
What is the main benefit of a pass-through system over a standard hook type?
The Hook Pass-Through Shot Blasting Machine allows for a continuous workflow where workpieces enter from one side and exit the other. This eliminates "batch-waiting" time, making it ideal for high-volume automated production lines and long structural parts.
Can the conveyor speed be adjusted for different types of workpieces?
Yes. The overhead rail system is controlled by frequency inverters (VFD), allowing you to precisely adjust the transport speed to match the complexity of your parts and your desired finish quality.
Is the machine compliant with international environmental standards?
Yes. Our high-efficiency dust collection system keeps emissions below 10mg/m³, meeting strict international environmental and OSHA safety regulations for a cleaner workspace.
Is a special foundation required for this large-pass-through system?
While many of our models feature a foundation-free, integrated design, larger pass-through systems may require specific floor reinforcement. We offer customized engineering to ensure the machine integrates perfectly with your existing rail heights.
